Alarm(s)

Work Unit Download

Download this Work Unit:

Alarms.wwu

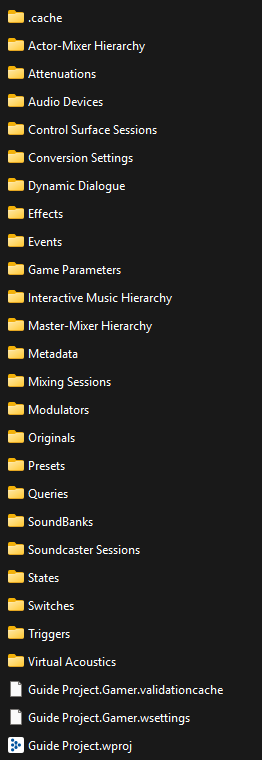

Open the project's directory and locate the "Actor-Mixer Hierarchy" folder. You want to place the downloaded Work Unit inside this folder.

ExampleImage

Now open the Wwise Project. If the Project was already opened, it may prompt to refresh/restart the app.

Event(s)

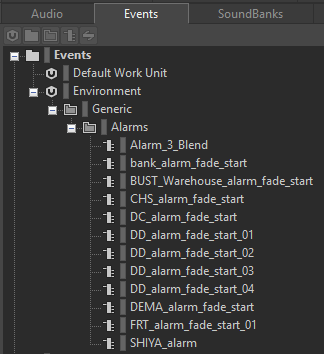

Go into the Events tab. The following image of Events3 is required* to be made, in order to replace the sound properly. You don't have to make every event if you don't want to replace the other SFXs listed. Still, please recreate the image in its folder structure, and naming.

ExampleImage

In order of release and event:


No Rest For The Wicked

Dirty Ice

Rock the Cradle

Under The Surphaze

Gold & Sharke

99 boxes

Turbid Station

First World Bank

Fear and Greed

bank_alarm_fade_start


Touch The Sky

Alarm_3_Blend


Syntax Error

DC_alarm_fade_start


Boys in Blue

FRT_alarm_fade_start_01


Houston Breakout

CHS_alarm_fade_start


Diamond District

DD_alarm_fade_start_01

DD_alarm_fade_start_02

DD_alarm_fade_start_03

DD_alarm_fade_start_04


Party Powder

BUST_Warehouse_alarm_fade_start


Delivery Charge

SHIYA_alarm


Shopping Spree

DEMA_alarm_fade_start


We'll come back to these events later.

Now go into the Audio tab, and find the "Actor-Mixer Hierarchy" section.

Under the section should be the Work Unit you imported previously. It'll contain the containers that you import your audio (.wav) files into.

Due to how Wwise handles imports, there are 2 settings that need to be applied for the audio to both work and sound good.

We're editing these Containers:

AlarmContainer

Output Bus

The first field that needs to be changed is the Output Bus

outputbus

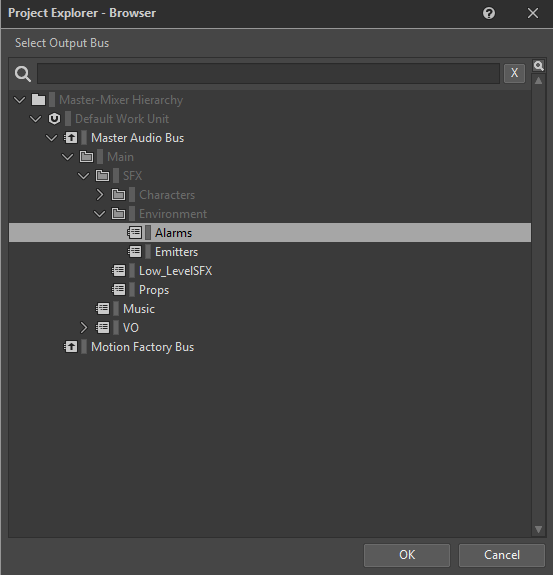

Click on the 3 dots next to it, and navigate to:

Master-Mixer Hierarchy > Default Work Unit > Master Audio Bus > Main > SFX > Environment

Exampleimage

Select Alarms and click OK

Global Obstruction

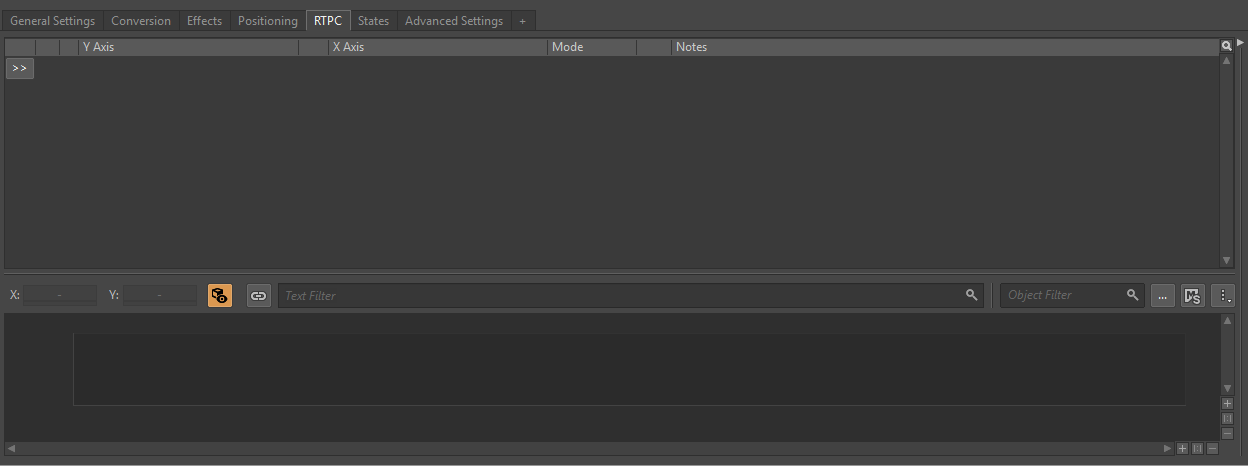

Next, go into the RTPC tab in the Container Property Editor

Exampleimage

This tab will be responsible how much the audio will lower when it comes to walls, doors, and floors being in the way.

Due to how much this is up to you, this is a separate page entirely that can be opened here.

Audio Importing

Importing audio is easy. From file explorer, select the audio you want to use, and drag it onto the respective Container.

A window will open on import settings, for this you want to import it as a Sound SFX. Everything else can be left on its default setting.

ExampleImage

If you want a preview of what to expect, Wwise has controls to play, pause, and stop the currently selected container/audio.

Player

By default, the Random Containers3 provided will loop 15 times. If you don't want this, change this field:

Loop

Once you're happy with your work, go back to the Events tab.

Events, again

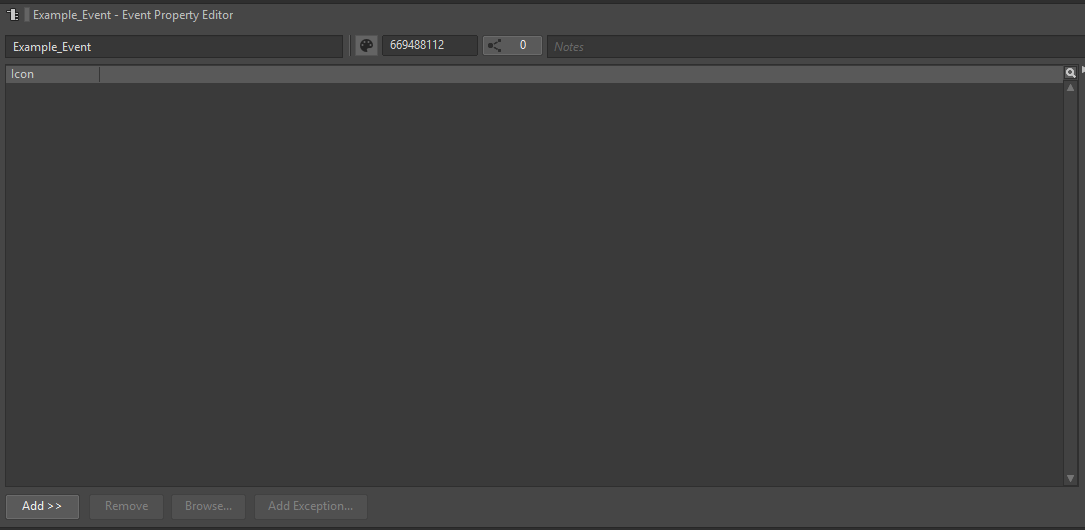

Open the events that were created previously, a window like this should be open:

ExampleImage

On the bottom left, there's an option to "Add >>". Click on it, and click "Browse Object..."

Then search for the Container3 that you want to play, whenever this event is triggered.

Once you find it, select and press OK.

Go ahead and do this to the other potential events, unless you have another container to play for it.

Paking

Press "Ctrl S" to save, and open the Unreal Engine Project you downloaded in First Time Setup1

Proceed to "Paking Your Mod" on the left hand side of the page
